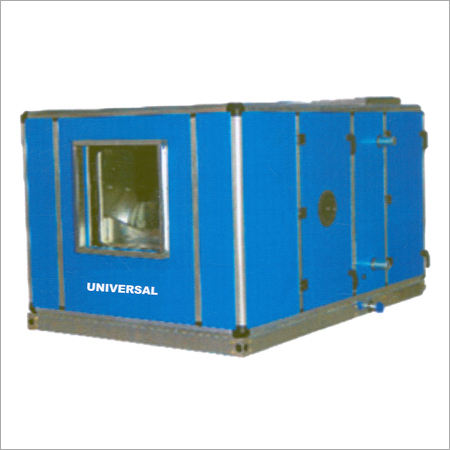

Double Skin Air Handling Units

We are much-admired name engaged in offering our prestigious clients premium quality Double Skin Air Handling Units. Our offered machines are extensively used in textile industry for handling high air quantities. These machines are manufactured by making use of supreme quality components and sophisticated technology in synchronization with set quality standards. In order to ensure their high efficiency, our quality associates test these machines on various parameters. Moreover, we offer these Double Skin Air Handling Units in different technical specifications at reasonable prices.
Features:
-
Hassle free performance
-
Low maintenance
-
Low power consumption
-
Easy to use
Technical Specifications:
AHU Overall Dimension | Coil Details | Air Quantity | Motor Rating | ||||||
AHU MODEL | Length | Width | Height | Fine length | Fine Height | | | 40mm TSP | 50mm TSP |
UNIVERSAL | mm | mm | mm | mm | mm | CFM | CMH | KW | KW |
UNI-035 | 1555 | 900 | 860 | 559 | 635 | 1910 | 3247 | 0.75 | 1.1 |
UNI-040 | 1555 | 1105 | 866 | 711 | 635 | 2431 | 4133 | 1.1 | 1.5 |
UNI-050 | 1670 | 1105 | 924 | 813 | 69 | 3056 | 5195 | 1.5 | 1.5 |
UNI-070 | 1670 | 1370 | 944 | 1067 | 699 | 4010 | 6817 | 1.5 | 2.2 |
UNI-080 | 1875 | 1370 | 1190 | 1067 | 889 | 4861 | 8264 | 2.2 | 2.2 |
UNI-100 | 1875 | 1510 | 1190 | 1168 | 953 | 5990 | 10183 | 2.2 | 3.7 |
UNI-110 | 1970 | 1715 | 1183 | 1372 | 889 | 6470 | 10999 | 3.7 | 3.7 |
UNI-120 | 1970 | 1715 | 1183 | 1422 | 953 | 7292 | 12396 | 3.7 | 3.7 |
UNI-135 | 2220 | 1460 | 1495 | 1168 | 1270 | 7986 | 13576 | 3.7 | 5.5 |
UNI-150 | 2015 | 1875 | 1495 | 1422 | 1143 | 8825 | 15003 | 3.7 | 5.5 |
UNI-160 | 2015 | 1875 | 1495 | 1473 | 1207 | 9566 | 16262 | 5.5 | 5.5 |
UNI-175 | 2035 | 1875 | 1495 | 1575 | 1207 | 10226 | 17384 | 5.5 | 5.5 |
UNI-190 | 2035 | 2015 | 1495 | 1727 | 1207 | 11200 | 19040 | 5.5 | 5.5 |
UNI-200 | 2035 | 2015 | 1495 | 1727 | 1270 | 11806 | 20070 | 5.5 | 5.5 |
UNI-220 | 2220 | 2015 | 1812 | 1575 | 1524 | 12904 | 21937 | 5.5 | 7.5 |
UNI-230 | 2220 | 2015 | 1812 | 1676 | 1524 | 13750 | 23375 | 5.5 | 7.5 |
UNI-240 | 2220 | 2035 | 1812 | 1727 | 1524 | 14167 | 24084 | 5.5 | 7.5 |
UNI-255 | 2320 | 2220 | 1812 | 1829 | 1524 | 15000 | 25500 | 7.5 | 7.5 |
UNI-265 | 2490 | 2220 | 1873 | 1829 | 1588 | 15625 | 26563 | 5.5 | 7.5 |
UNI-290 | 2490 | 2325 | 1872 | 1981 | 1588 | 16927 | 28776 | 7.5 | 7.5 |
UNI-300 | 2490 | 2390 | 1867 | 2083 | 1588 | 17795 | 30252 | 7.5 | |
UNIVERSAL | mm | mm | mm | mm | mm | CFM | CMH | KW | KW |
UNI-325 | 2490 | 2635 | 1812 | 2337 | 1524 | 19167 | 32584 | 7.5 | 9.3 |
UNI-340 | 2640 | 2635 | 1904 | 2337 | 1588 | 19965 | 33941 | 7.5 | 11 |
UNI-355 | 2735 | 2635 | 2116 | 2337 | 1651 | 20800 | 35360 | 7.5 | 11 |
UNI-370 | 2735 | 2635 | 2116 | 2286 | 1778 | 21875 | 37188 | 9.3 | 11 |
UNI-390 | 2375 | 2635 | 2118 | 2337 | 1842 | 23160 | 39372 | 11 | 11 |
UNI-410 | 2800 | 2635 | 2215 | 2337 | 1905 | 23958 | 40729 | 11 | 11 |
UNI-430 | 2800 | 2635 | 2130 | 2591 | 1842 | 25330 | 43010 | 11 | 15 |
UNI-445 | 2800 | 2935 | 2130 | 2642 | 1842 | 26181 | 44508 | 11 | 15 |
UNI-455 | 2800 | 2935 | 2127 | 2692 | 1842 | 26684 | 45363 | 11 | 15 |
UNI-470 | 2800 | 3000 | 2130 | 2794 | 1842 | 27650 | 47005 | 11 | 15 |
UNI-490 | 2800 | 3290 | 2130 | 2896 | 1842 | 28698 | 48787 | 11 | 15 |
UNI-500 | 2800 | 3290 | 2130 | 2946 | 1842 | 29400 | 49980 | 11 | 15 |
UNI-520 | 3035 | 2935 | 2432 | 2642 | 2159 | 30694 | 52180 | 11 | 15 |
UNI-540 | 3035 | 2935 | 2508 | 264 | 2223 | 31597 | 53715 | 11 | 15 |
UNI-570 | 3035 | 3290 | 2442 | 2896 | 2159 | 33646 | 57198 | 15 | 15 |
UNI-600 | 3035 | 3290 | 2572 | 2896 | 2289 | 35625 | 60563 | 15 | 18.5 |
