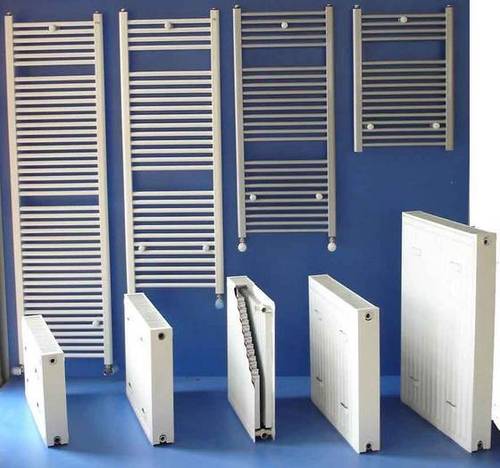

Panel Radiators

The Panel Radiators offered by us is manufactured at our well-equipped production unit using the finest quality components and ultra-modern technology in compliance with international quality standards. We have marked a distinct position in this domain by manufacturing and supplying the best assortment of this radiator that is widely admired by our patrons. Offered product is mainly used in doors and windows. Moreover, offered Panel Radiators is available in different technical specifications at affordable rates.
Features:
-
Strong construction
-
Ease of installation
-
Rust proof body
-
Superior functionality
Other Info:
With an outstanding choice of heights, lengths and flexible connection options, these high performance panel radiators provide an ease of installation and production excellence that is suitable for the most demanding of specification requirements.
Radiator Standards
-
Compact ventile and thermostatic valve options
-
Maximum resistance to corrosion by epoxy polyester powder painting technology
-
Different color options besides standards RAL 9010 color
-
Special packaging and export palletization system against possible strokes
-
All accessories are included in the package
-
10 year Guarantee
-
100% quality control system for quality control reports
-
Exceptionally slim design enables space saving.
Technical Specifications
Type | Height | 10oC | 12oC | 15oC | 18oC | 20oC | 22oC | 24oC | 26oC | ||||||||
Mm | Watt | Kcal/h | Watt | Kcal/h | Watt | Kcal/h | Watt | Kcal/h | Watt | Kcal/h | Watt | Kcal/h | Watt | Kcal/h | Watt | Kcal/h | |
10-P | 400 | 712 | 612 | 685 | 589 | 647 | 556 | 609 | 524 | 585 | 503 | 561 | 482 | 535 | 460 | 510 | 436 |
500 | 896 | 771 | 851 | 741 | 813 | 700 | 768 | 561 | 737 | 634 | 703 | 605 | 672 | 578 | 640 | 551 | |
600 | 1035 | 891 | 998 | 858 | 942 | 810 | 887 | 763 | 850 | 731 | 814 | 700 | 777 | 668 | 741 | 627 | |
900 | 1507 | 1296 | 1452 | 1249 | 1370 | 1178 | 1289 | 1109 | 1235 | 1062 | 1183 | 1017 | 1129 | 971 | 1076 | 925 | |
11-PK | 400 | 1192 | 1025 | 1147 | 956 | 1079 | 928 | 1012 | 870 | 968 | 832 | 925 | 796 | 880 | 757 | 837 | 720 |
500 | 1394 | 1200 | 1341 | 1154 | 1262 | 1086 | 1183 | 1018 | 1133 | 975 | 1082 | 931 | 1030 | 886 | 980 | 843 | |
600 | 1633 | 1404 | 1571 | 1351 | 1478 | 1271 | 1386 | 1192 | 1325 | 1140 | 1268 | 1090 | 1206 | 1037 | 1148 | 987 | |
900 | 2288 | 1968 | 2201 | 1893 | 2071 | 1781 | 1943 | 1671 | 1859 | 1599 | 1776 | 1527 | 1691 | 1454 | 1809 | 1384 | |
21-PKP | 400 | 1641 | 1411 | 1578 | 1357 | 1484 | 1276 | 1392 | 1197 | 1332 | 1145 | 1271 | 1083 | 1211 | 1041 | 1151 | 990 |
500 | 2110 | 1816 | 2031 | 1748 | 1915 | 1648 | 1800 | 1549 | 1724 | 1484 | 1650 | 1420 | 1571 | 1352 | 1497 | 1288 | |
600 | 2162 | 1859 | 2079 | 17488 | 1956 | 1682 | 1835 | 1578 | 1756 | 1510 | 1676 | 1441 | 1597 | 1373 | 1519 | 1350 | |
900 | 2912 | 2504 | 2801 | 2409 | 2637 | 2258 | 2476 | 2129 | 2368 | 2035 | 2261 | 1944 | 2156 | 1854 | 2050 | 1763 | |
22-PKKP | 400 | 2298 | 1975 | 2211 | 1901 | 2083 | 1791 | 1956 | 1682 | 1873 | 1611 | 1790 | 1539 | 1705 | 1466 | 1623 | 1396 |
500 | 2674 | 2301 | 2567 | 2209 | 2415 | 2078 | 2272 | 1955 | 2175 | 1872 | 2075 | 1787 | 1961 | 1705 | 1881 | 1619 | |
600 | 3227 | 2775 | 3103 | 2669 | 2920 | 2511 | 2740 | 2356 | 2521 | 2254 | 2504 | 2153 | 2384 | 2050 | 2267 | 1950 | |
900 | 4271 | 3573 | 4107 | 3532 | 3852 | 3321 | 3621 | 3114 | 3463 | 2978 | 3307 | 2844 | 3147 | 2706 | 2982 | 2573 | |
33-PKKPKP | 400 | 3390 | 2915 | 3260 | 2805 | 3072 | 3642 | 2886 | 3482 | 2763 | 2376 | 2641 | 2271 | 2516 | 2164 | 2396 | 2061 |
500 | 3993 | 3436 | 3839 | 3304 | 3515 | 3111 | 3394 | 2921 | 3215 | 2798 | 3107 | 3674 | 2598 | 2546 | 2818 | 2425 | |
600 | 4540 | 3912 | 4376 | 3763 | 4119 | 3562 | 3867 | 3326 | 3700 | 3182 | 3536 | 3940 | 3358 | 2896 | 3204 | 2755 | |
900 | 5563 | 4784 | 5349 | 4600 | 5031 | 4327 | 4718 | 4057 | 4512 | 3580 | 4310 | 3707 | 4101 | 3527 | 3898 | 3352 |
